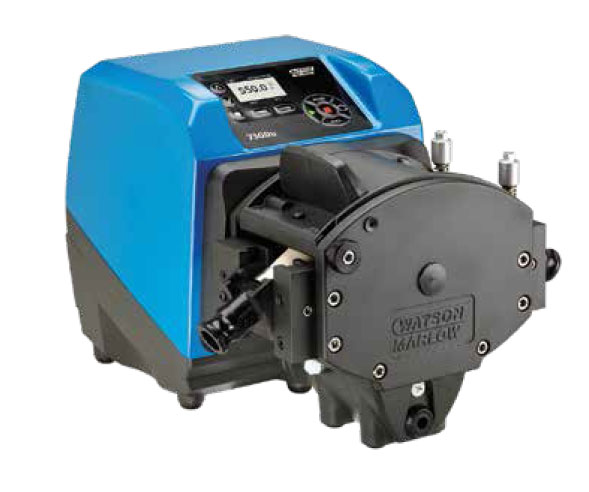

Watson Marlow 700 series pumps: 730SN, 730UN, 730DuN and 730BpN peristaltic process pumps fitted with tube element pumpheads
Main features
730 range of peristaltic pumps offer four drive options, colour display and intuitive menu structure provide visual status indication and minimal key presses
Flows up to 8.8 USGPM 30 psi / 33 litre/min (2 bar) using LoadSure tube elements
Industrial integration — manual, remote, Analog and digital communication, plus PROFIBUS
Keypad incorporates 3-level security PIN lock
NEMA 4X (IP66) rated cased pumps
Watson Marlow 700 series pumps
720RE and 720REX LoadSure tubing element pumpheads
720RE pumpheads accommodate 4.8mm-wall LoadSure tubing elements in two conformations: with PVDF Tri-clamp-style connectors for sanitary applications; and with industrial Cam-and-Groove connectors. Both are offered in four bore sizes: 12.7mm, 15.9mm, 19.0mm and 25.4mm, giving up to 8.8 GPM (2,000 l/hr) flow at up to 30 psi (2 bar) pressure.
720REX extension pumpheads offer identical performance, but at a maximum pressure of 15 psi (1 bar).
Elements are available in Pumpsil platinum-cured silicone, Bioprene and STA-PURE PCS for sanitary applications; and in Marprene, Pumpsil and Neoprene for industrial use.
720R and 720RX continuous tubing pumpheads
720R pumpheads accommodate 4.8mm wall continuous tubing for joint-free flow from source to discharge. Available in five bore sizes: 9.6mm, 12.7mm, 15.9mm 19.0mm and 25.4mm, giving up to 8.8 GPM (2,000 l/hr) flow at up to 30 psi (2 bar) pressure.
720RX extension pumpheads offer identical performance, but at a maximum pressure of 15 psi (1 bar).
Tubing is available in five materials for almost any chemical requirement.
