By combining external controlling through signal entry with internal self-controlling, the Grundfos UPM3 Hybrid OEM circulator pump is all your circulator needs in one product, providing you with access to a full range of settings. For all kind of applications with flexible settings in OEM production or in the installation field.
Characteristic Features
Glandless High Efficiency circulator for integration in HVAC systems; EEI ≤ 0.20 EN16297/3
Smallest design ever for a circulator; smaller than the well-known UPS circulator
Externally and internally controlled circulator
Substitutes UPM2 and ALPHA2 pumps
Available with many standard and customized housings
Active or passive inrush current limitation
Ambient temperatures of up to 70 °C.

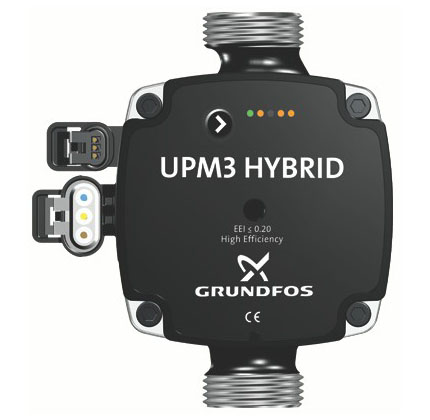

Grundfos UPM3 Hybrid OEM circulator pump
Benefits
Lowest space requirements ever for a circulator integrated in an appliance
Optimised design fit for easy accessibility
Easy access to the user interface from front
Easy access to the connectors from front
Easy access to the pump head screws from the front
Easy access to the de-blocking screw from front
Intelligent configuration
5 control modes, 18 curves, PLUS 2 AUTOADAPT proportional and constant pressure
Different signals and profiles available (PWM A, PWM C, KMBus)
Standard return signal showing power consumption, alarm and operation status
Other customized input profiles and different return profiles are possible e.g. flow estimation
Ready for Conversion according Ecodesign requirement for August, 2015 exceeding benchmark level; EEI ≤ 0.20 EN16297/3
Unmatched reliability
Field and lab tested product quality
Ceramic bearing shaft — The UPM3 comes equipped with ceramic bearing shafts for a long and trouble-free lifetime. The ceramic material is extremely durable and will not wear.
Double de-blocking system — Electronic de-blocking that maintains the maximum starting torque up to 25 Ncm and manual de-blocking accessible from the front without demounting the control box.
High temperature resilience — The resilience to heat will enhance the possibilities of system integration enormously. Ambient temperatures of up to 70 °C.
